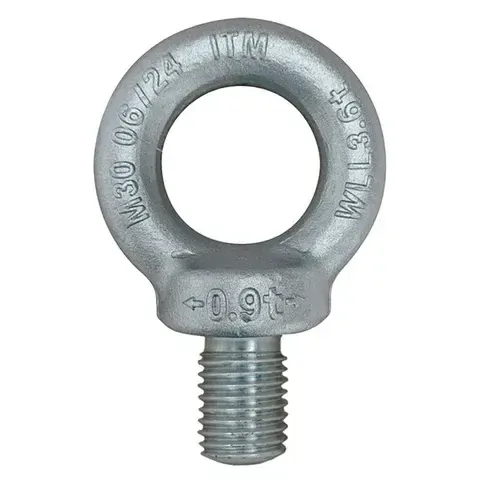

Lifting Shoulder EyeBolt With Metric Thread Din 580 30mm 3.6T ITM TM9240-02300

FEATURES:

  • Galvanised finish
  • Specifications, batch and brand markings as per Australian Standards requirements
  • Tested and certified to AS 2317

SPECIFICATIONS:

  • Thread: M30
  • W.L.L (t): 3.6
  • Dimension D (mm): 30
  • Dimension D1 (mm): 60
  • Dimension D2 (mm): 65
  • Dimension D3 (mm): 24
  • Dimension H (mm): 109
  • Dimension H1 (mm): 45
  • Dimension W (mm): 108

Part Number/SKU: TM9240-02300

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9240-02300
Brand ITM
Unit Of Measure ea
