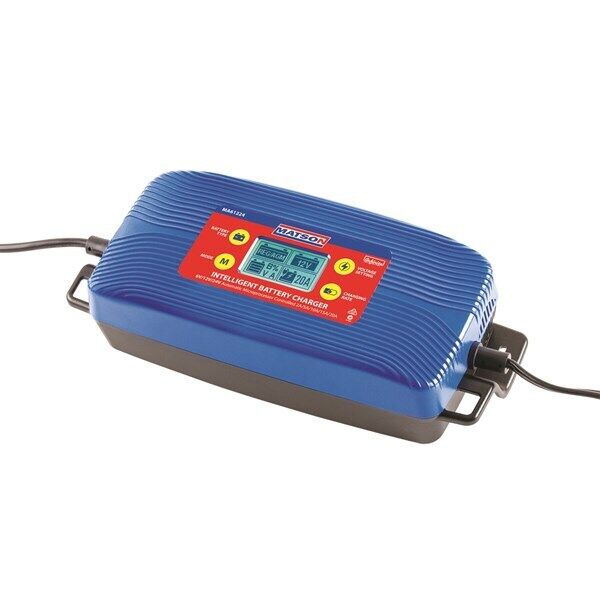

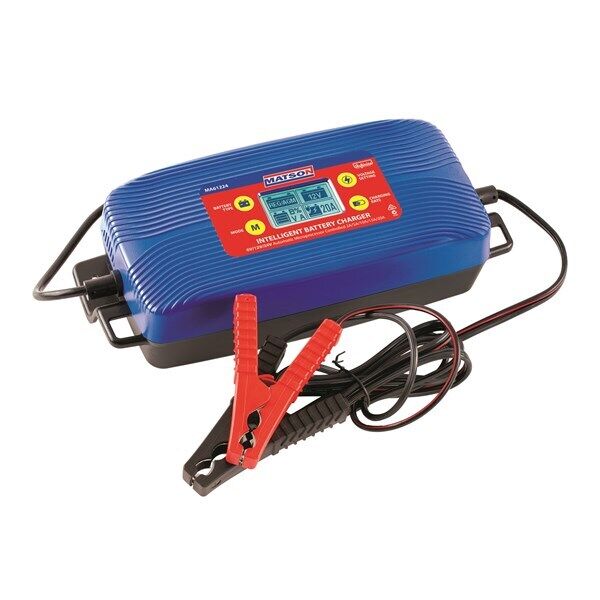

Multi Voltage 6/12/24V Battery Charger With Power Supply Matson MA61224

Features

  • Variable voltage output 6/12/24v
  • Lithium compatible
  • Power supply function 12/24v
  • Reverse polarity protections
  • Simple operation, easy to read display
  • Fully Programmable

ATTRIBUTES

Absorption YES
Alternator Function Alternator test
Amps 20A
Analysis / Fault Find YES
Battery Type LEAD ACID, AGM, GEL, CALCIUM, LITHIUM
Cable Length 1.8M
Charge Rate 6/12V- 20A
24V- 10A
Charging Stage 8STAGES
Dimensions 300X100X75MM
Fan Cooled YES
Input Voltage - AC 240v
Max Current 12V 20A
Max Current 24V 10A
Min Start Voltage 1.5v
Output Current 6/12 Volt, 2/10/20 Amp. 24 Volt, 2/5/10 Amp Selectable
Output Voltage 6/12/24 Volt DC Selectable
Overload Protection YES
Power Supply Rate 20A
Reverse Polarity Protection YES
Short Circuit Protection YES
Weight 1.9Kg

Part Number/SKU: MA61224

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU MA61224
Brand Matson
Shipping Weight 2.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 0.400m
Unit Of Measure ea
