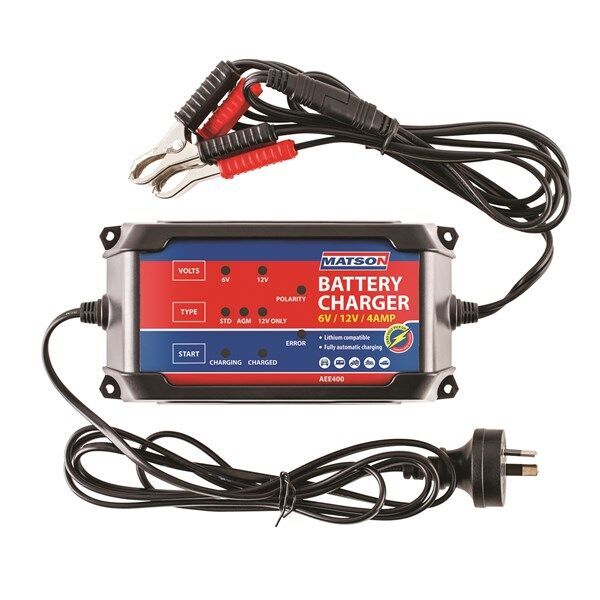

6/12V Battery Charger 4AMP Tridon AEE400

FEATURES:

• MULTI-STAGE CHARGING PROCESS: The charger uses a Multi-Stage charging process designed to charge and maintain the battery. The charging process includes a Soft Start mode to properly charge deeply discharged batteries, and is beneficial for the long-term health of your batteries. The last procedure in the charging routine is a Maintenance Mode that allows the charger to be connected to a battery and maintain a proper charge level.
• SMART CLAMP TECHNOLOGY:  The charger will supply power to the output leads only when a correct connection is made.
• MULTIPLE BATTERY COMPATIBILITY:  The charger will charge different battery types, including Conventional, Maintenance Free, AGM, Gel Cell, LiFePO4, and Deep Cycle batteries.
• MULTIPLE OUTPUT OPTIONS:  The charger comes complete with DC output clamps and ring terminals to charge or maintain the battery.
• REVERSE POLARITY PROTECTION:  Reverse Polarity LED will flash, and power will be cut off if the clamps connect reversely.
• BATTERY FAULT PROTECTION: Conditions that cause the fault include connecting to a battery with a voltage less than 1V, connecting to a battery with a voltage above 16V in 12V mode (8V in 6V mode), connecting to a battery with a shorted cell or if the charger diagnoses an incorrect voltage selection.
• RECOVERY MODE:  The charger can protect against the interruption of power (power outage). When a power interruption occurs, all LEDs will turn off, except the Battery Type LED, which will blink slowly. After 36 hours, to conserve the charge on the connected battery, all LEDs will turn off. Upon resumption of power, the charger will resume normal operation in the existing settings, and status indicators will again be active. For a limited time after the resumption of power, the CHARGED LED will blink to indicate that Recovery Mode has been activated. If the battery’s voltage is too low (<6V) to support Recovery Mode while charging, the Battery Type LED will flash rapidly to alert the user to this condition. Once the battery’s voltage increases above 6V, Recovery Mode will again be supported, and the Battery Type LED will stop flashing

SPECIFICATIONS:

Part Number/SKU: AEE400
