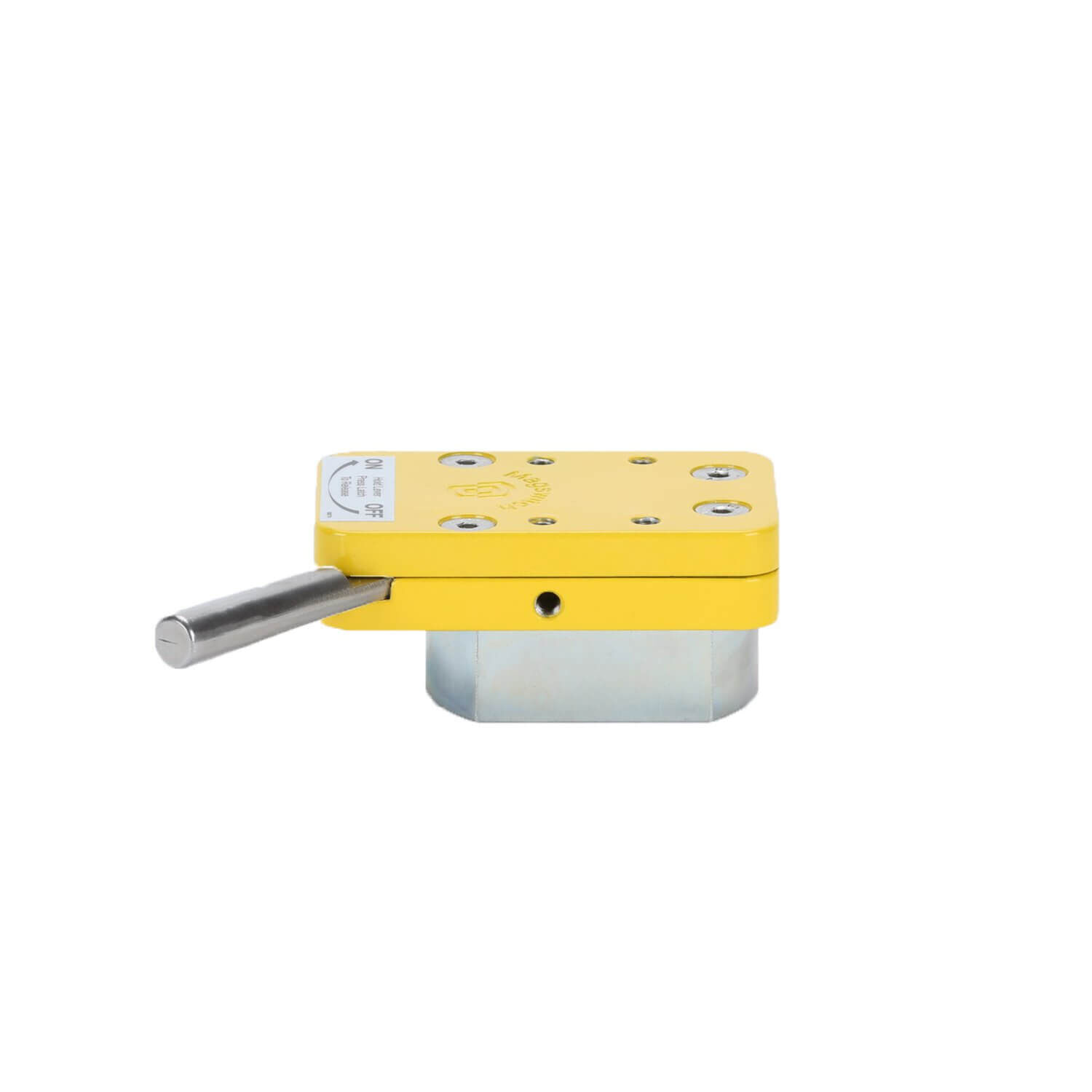

Mag Mount 300 Magswitch 8100595

MagMount 300 allows for easy movement and placing of a tool. With a single On/Off lever, you have 300 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

Features

  • Magnet turns completely On and Off.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Holds flat and round surfaces of steel.
  • Fixed bar magnet is for flat steel
  • Swivel bar magnet is for round or uneven shapes.
  • Multiple threaded holes on the top.
  • Perfect for top mount tools, measuring and security devices.
  • Versatile and can be used in fixed plant or job site applications, or for items being transported.
  • 90 degree actuation, fast precise positioning with strong hold.
  • The top mount magnets feature two magnets are ideal for supporting fixtures over a distance.

SPECIFICATIONS

  • Max Breakaway: 246 lbs/111 kg
  • Full Saturation Thickness: 3/16in/4.75mm
  • 2:1 Shear Working Load: 10.6 lbs/4.8 kg
  • Product Weight: 1.2 lbs/0.5 kg
  • Overall Height: 1.7in/43.8mm
  • Magnetic Pole Footprint: 71.8mm x 51.5mm

Part Number/SKU: 8100595

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 8100595
Brand Magswitch
Shipping Weight 25.0000kg
Shipping Width 0.350m
Shipping Height 0.700m
Shipping Length 0.350m
Unit Of Measure ea
