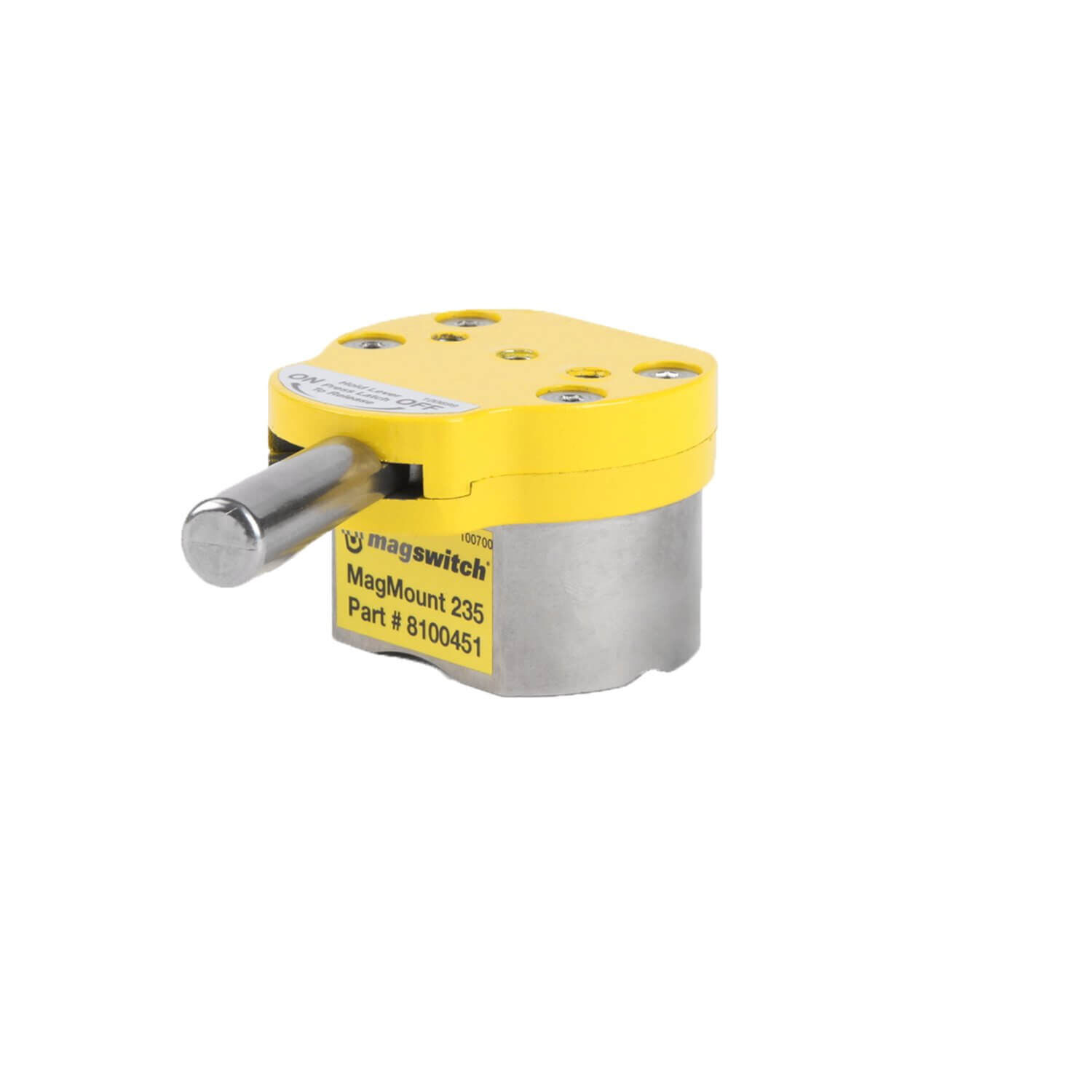

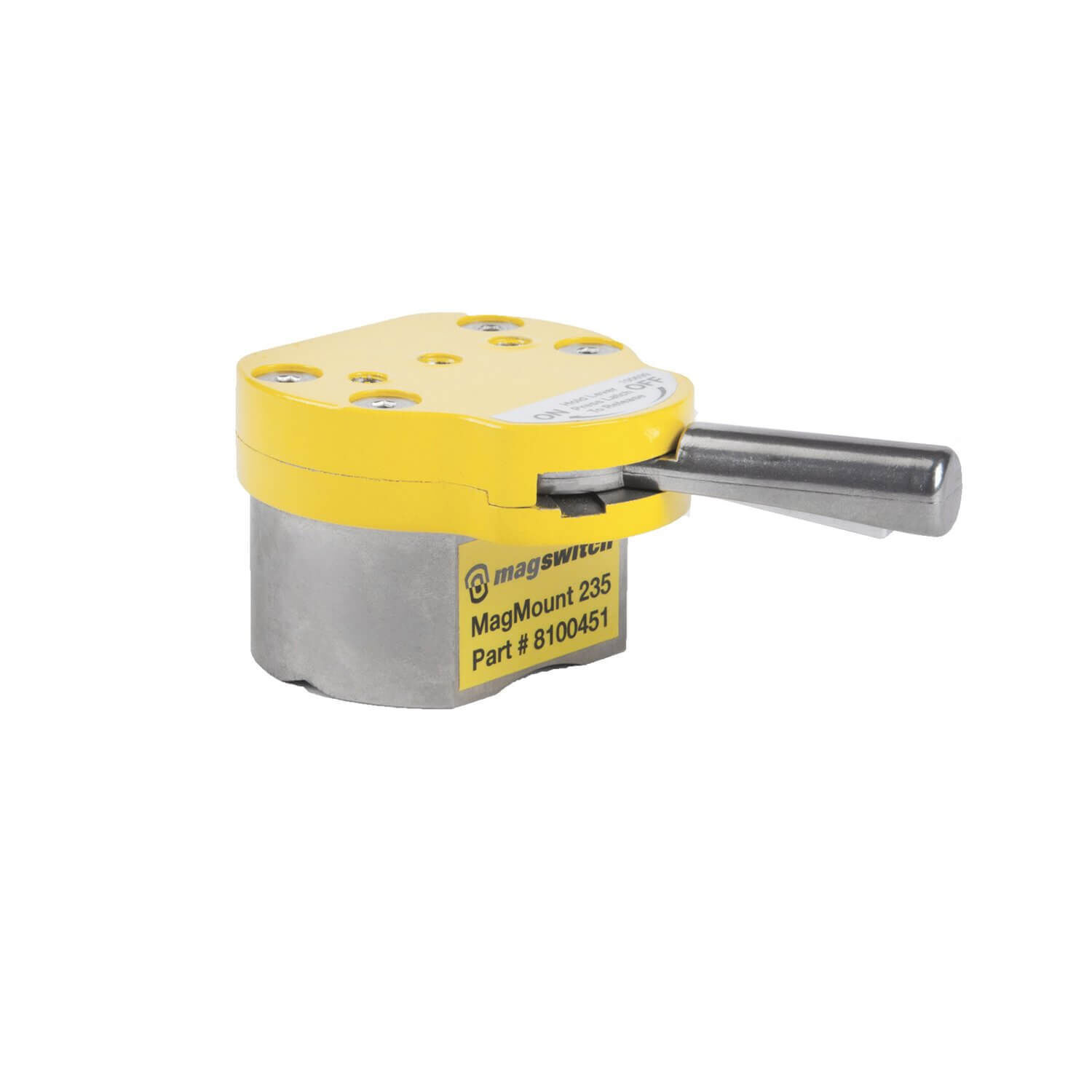

Mag Mount 235 Magswitch 8100451

MagMount 235 allows for easy movement and placing of a tool. With a single On/Off lever, you have 235 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

SPECIFICATIONS

  • Max Breakaway: 216 lbs (98 kg) on 3/8” steel
  • Full Saturation Thickness: 3/16” (4.75 mm)
  • Product Weight: 1.2 lbs (0.54 kg)
  • Dimensions: 3.8 x 2.7 x 1.7 in (96.5 x 68.5 x 43.1 mm)
  • Magnetic Pole Footprint: 56 mm x 42 mm

Features

  • Magnet turns completely On and Off.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Holds flat and round surfaces of steel.
  • Fixed bar magnet is for flat steel
  • Swivel bar magnet is for round or uneven shapes.
  • Multiple threaded holes on the top.
  • Perfect for top mount tools, measuring and security devices.
  • Versatile and can be used in fixed plant or job site applications, or for items being transported.
  • 90 degree actuation, fast precise positioning with strong hold.
  • The top mount magnets feature two magnets are ideal for supporting fixtures over a distance.

Part Number/SKU: 8100451

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 8100451
Brand Magswitch
Shipping Weight 3.0000kg
Shipping Width 0.350m
Shipping Height 0.250m
Shipping Length 0.200m
Unit Of Measure ea
