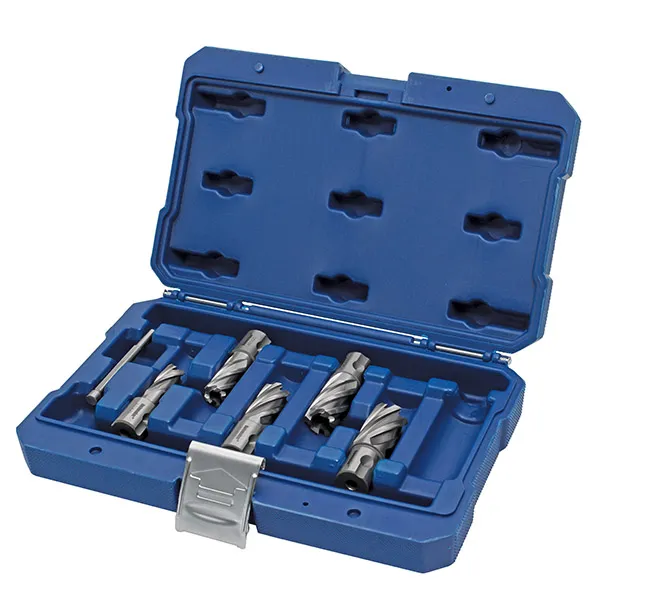

Annular Cutter Holemaker Silver Series Set 7 Pcs Metric Short 14, 16, 18, 20, 22mm & Pin ASSET-A
Notify me when back in stock
Annular Cutter Holemaker Silver Series Set 7 Pcs, Metric Short 14, 16, 18, 20, 22mm & Pin
Description :
Set Includes:
- 1x AS1425 14mm x 25mm
- 1x AS1625 16mm x 25mm
- 1x AS1825 18mm x 25mm
- 1x AS2025 20mm x 25mm
- 1x AS2225 22mm x 25mm
- 1x SP16003 Short Pilot Pin
M2AL HIGH SPEED STEEL MATERIAL
M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
STEP HARDENED PROCESS
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
MULTI-CUT GEOMETRY
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
FULLY GROUND WITH INTERNAL RELIEF
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
UNIVERSAL SHANK
19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.
.
Part Number/SKU: ASSET-A
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
Specifications :
Quantity | Part No. | Diameter | Depth Of Cut |
1 | AS1425 | 14mm | 25mm |
1 | AS1625 | 16mm | 25mm |
1 | AS1825 | 18mm | 25mm |
1 | AS2025 | 20mm | 25mm |
1 | AS2225 | 22mm | 25mm |
SKU | ASSET-A |
Brand | ITM |
Shipping Weight | 1.5000kg |
Shipping Width | 0.150m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
Unit Of Measure | ea |
