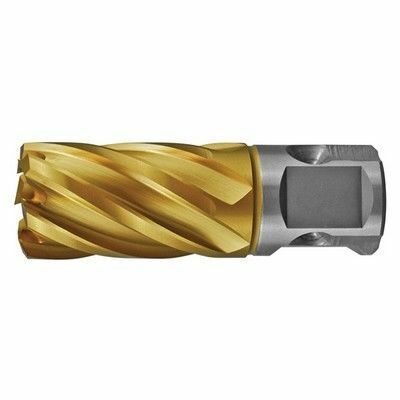

Annular Cutter 12mm Diameter 25mm Depth Uni Shank Gold Series Holemaker AT1225

TITANIUM NITRIDE COATING - The Titanium Nitride coating significantly increases the tool life by providing the following benefits: * Increased surface hardness to 85HRC * Ceramic surface reducing friction by up to 30% * Especially resistant to cold welding * Suitable for cutting a wide range of materials M2AL HIGH SPEED STEEL MATERIAL M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC designed for increased endurance of the cutting edge and tool life. STEP HARDENED PROCESS This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters. MULTI-CUT GEOMETRY Provides smooth and fast cutting with decreased chatter. This also increases the cutters ability to remove swarf away from the cut and helps to enhance centering. FULLY GROUND WITH INTERNAL RELIEF This feature allows Holemaker cutters to produce reamed quality burr-free holes and also helps to reduce torque and horsepower requirements. UNIVERSAL SHANK 19.05mm (¾'') Universal Shank with 2 flat sections to suit most magnetic basedrilling machines. Depth Of Cut: 25mm

Features
TITANIUM NITRIDE COATING - The Titanium Nitride coating significantly increases the tool life
Specifications
HOLEMAKER GOLD SERIES UNI SHANK TINITE CUTTER 12MM X 25MM
TITANIUM NITRIDE COATING - The Titanium Nitride coating significantly increases the tool life:
Technical Specifications
Brand Holemaker
Depth of Cut 25 mm
Diameter 12 mm

Part Number/SKU: AT1225

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Part No.

Diameter

Depth Of Cut

Pilot Pin Diameter

Shank Diameter

AT1225

12mm

25mm

6.34mm

3/4″ (19.05mm)

SKU AT1225
Brand Holemaker
Shipping Weight 0.6500kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.040m
Unit Of Measure ea
