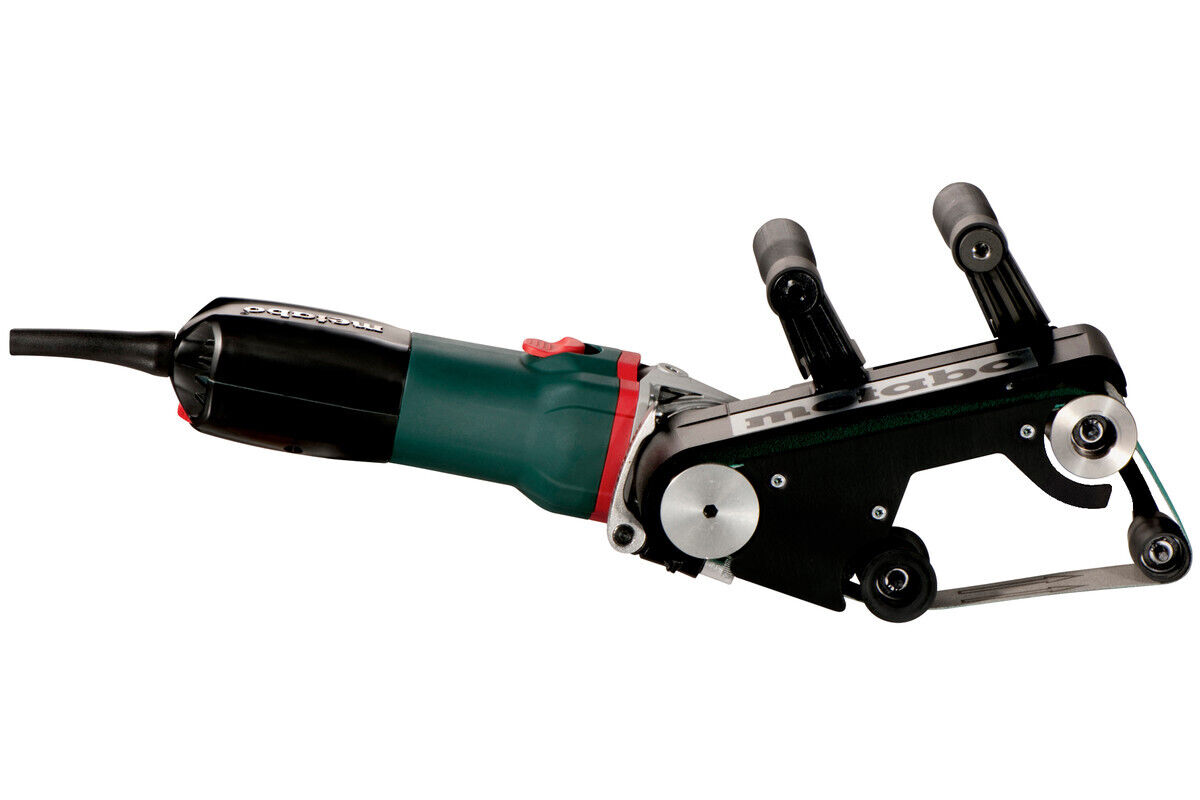

Tube Belt Sander Set RBE 9-60 SET 602183510

  • Compact tube belt sander with high belt speeds for productive processing of stainless steel pipes
  • Large wrap angle of 190° for smooth surfaces
  • Metabo Marathon motor with patented dust protection for long service life
  • Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
  • Tool-free change of sanding belt and adjustable belt guide
  • Electronic overload protection for long service life
  • Electronic soft start for smooth start-up
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Auto-stop carbon brushes to protect the motor.

Scope of delivery

  • 10 Sanding belts zirconia (30x533 mm; P80)
  • 2 Pyramid sanding belts (30x533 mm; P280/A65)
  • 2 Pyramid sanding belts (30x533 mm; P400/A45)
  • 2 Pyramid sanding belts (30x533 mm; P600/A30)
  • 2 Pyramid sanding belts (30x533 mm; P1200/A16)
  • 3 Fleece bands (30x533 mm; medium)
  • Metal carry case



Technical Data


Rated input power
900 W
Output power
470 W
Belt speed in idle
8 - 14 m/s // 1575 - 2756 ft/min m/s
Dimensions of grinding belt
30 x 533 mm / 1 3/16 x 21 "
Maximum pipe diameter
60 mm / 2 3/8 "
Wrap angle
190 °
Weight (without power cable)
3.1 kg / 6.8 lbs
Cable length
4 m / 13 ft
Vibration
Surface grinding
1.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)

Part Number/SKU: 602183510

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Specifications:

  • Rated input power:     900 W
  • Output power:    470 W
  • Belt speed in idle:     8 - 14 m/s // 1575 - 2756 ft/min
  • Dimensions of grinding belt:     30 x 533 mm / 1 3/16 x 21 "
  • Maximum pipe diameter:     60 mm / 2 3/8 "
  • Wrap angle:     190 °
  • Weight (without power cable):     3.1 kg / 6.8 lbs
  • Cable length:     4 m / 13 ft
SKU 602183510
Barcode # 4007430298898
Brand Metabo
Shipping Weight 5.5000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.500m
Unit Of Measure ea

3 years warranty
