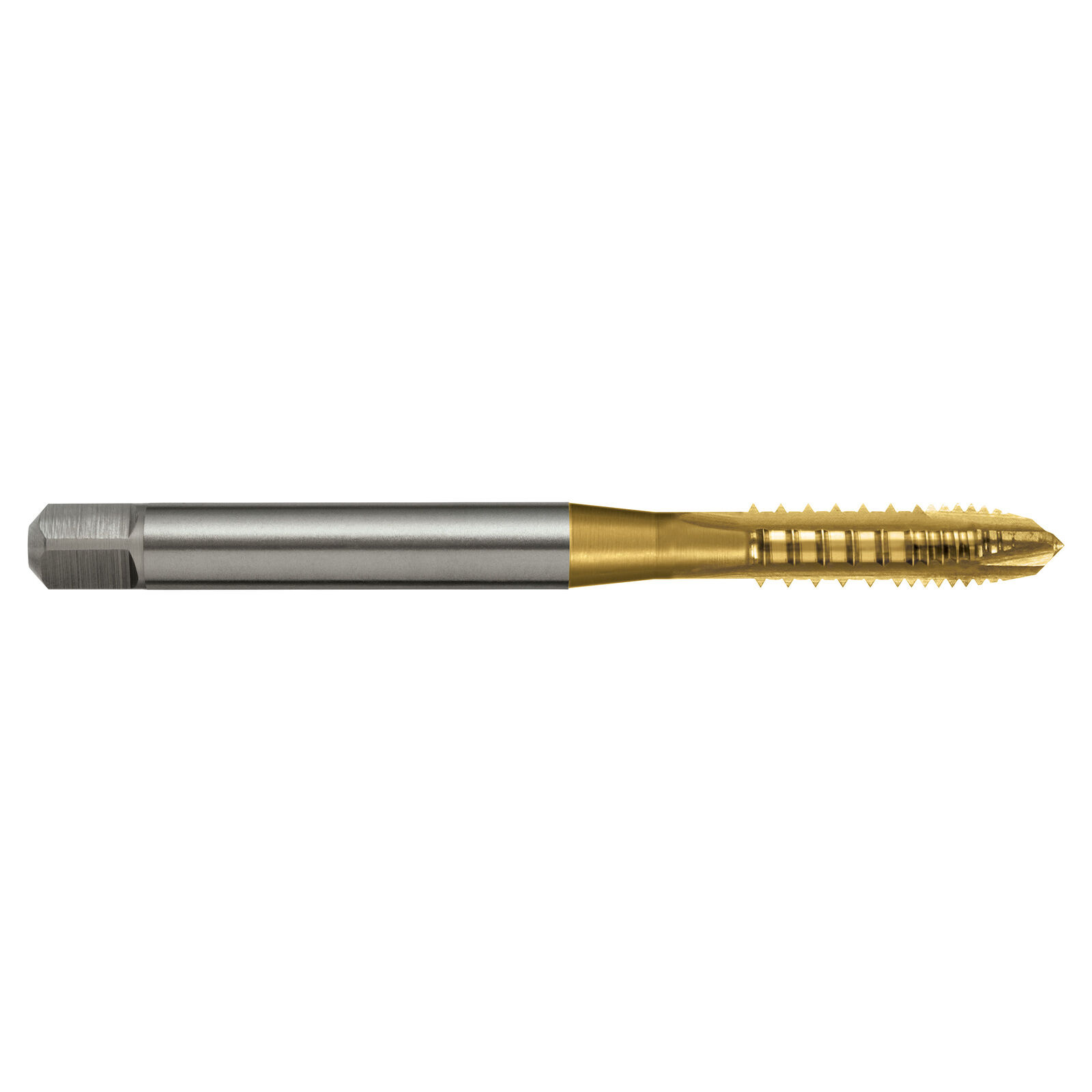

TAP T130 M 4x0.7 6H GUN W-AZ DIN371 B HSSE TiN T1300400
Part No: T1300400
$40.12
Includes GST
Notify me when back in stock
TAP T130 M 4x0.7 6H GUN W-AZ DIN371 B HSSE TiN T1300400
Features
- Interrupted threads allow greater lubricant flow and reduce friction
- Use in soft elastic materials
- For long-chipping materials
- Through holes up to 3 x d1
Specifications
- Designation: W (for Soft Materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Part Number/SKU: T1300400
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | T1300400 |
Barcode # | 9311963398211 |
Brand | Sutton Tools |
Shipping Weight | 0.0080kg |
Shipping Width | 0.080m |
Shipping Height | 0.010m |
Shipping Length | 0.010m |
