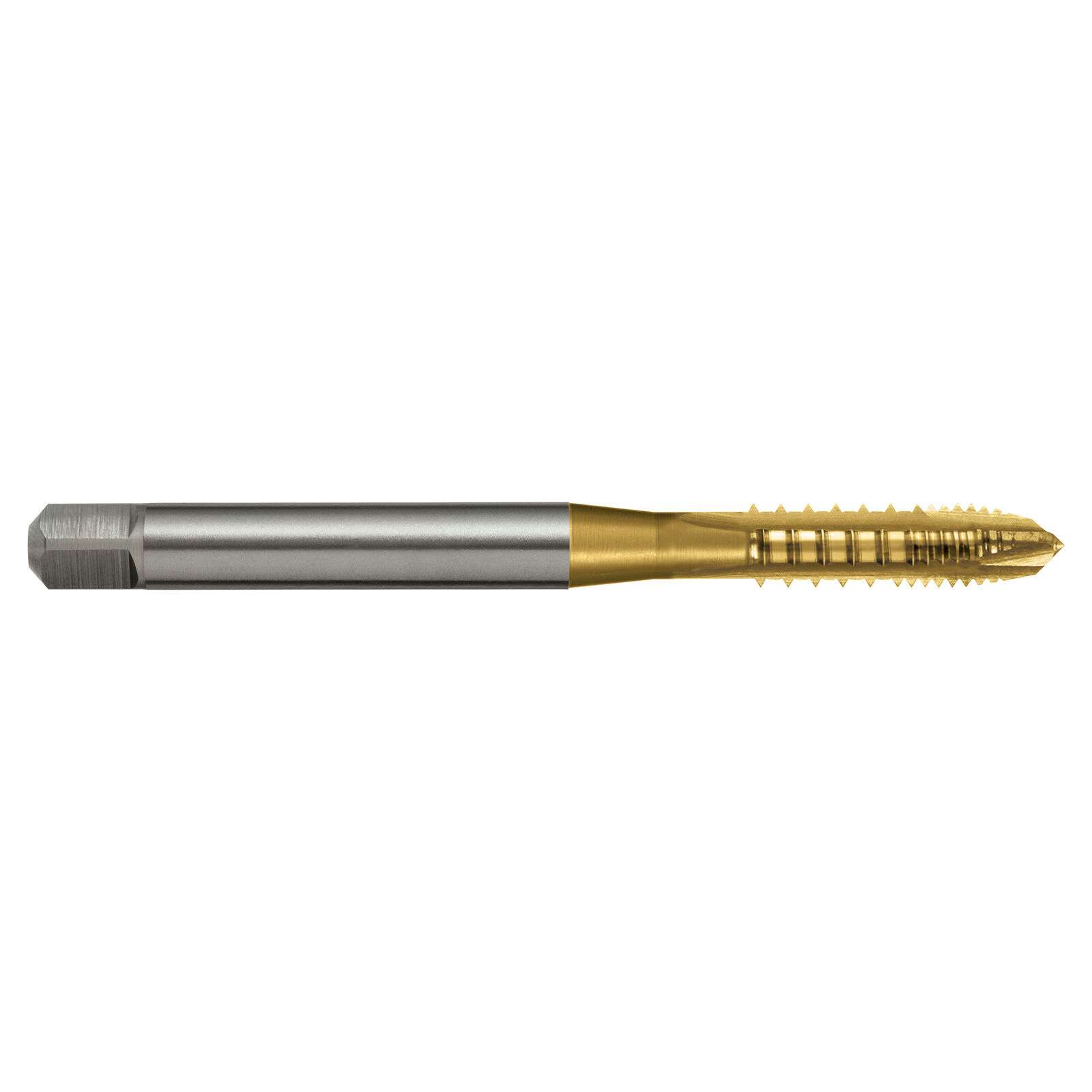

TAP T130 M 10x1.5 6H GUN W-AZ DIN371 B HSSE TiN T1301000



Features

  • Interrupted threads allow greater lubricant flow and reduce friction
  • Use in soft elastic materials
  • For long-chipping materials
  • Through holes up to 3 x d1

Specifications

  • Designation: W (for Soft Materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1301000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1301000
Barcode # 9311963398259
Brand Sutton Tools
Shipping Weight 0.0550kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.115m
