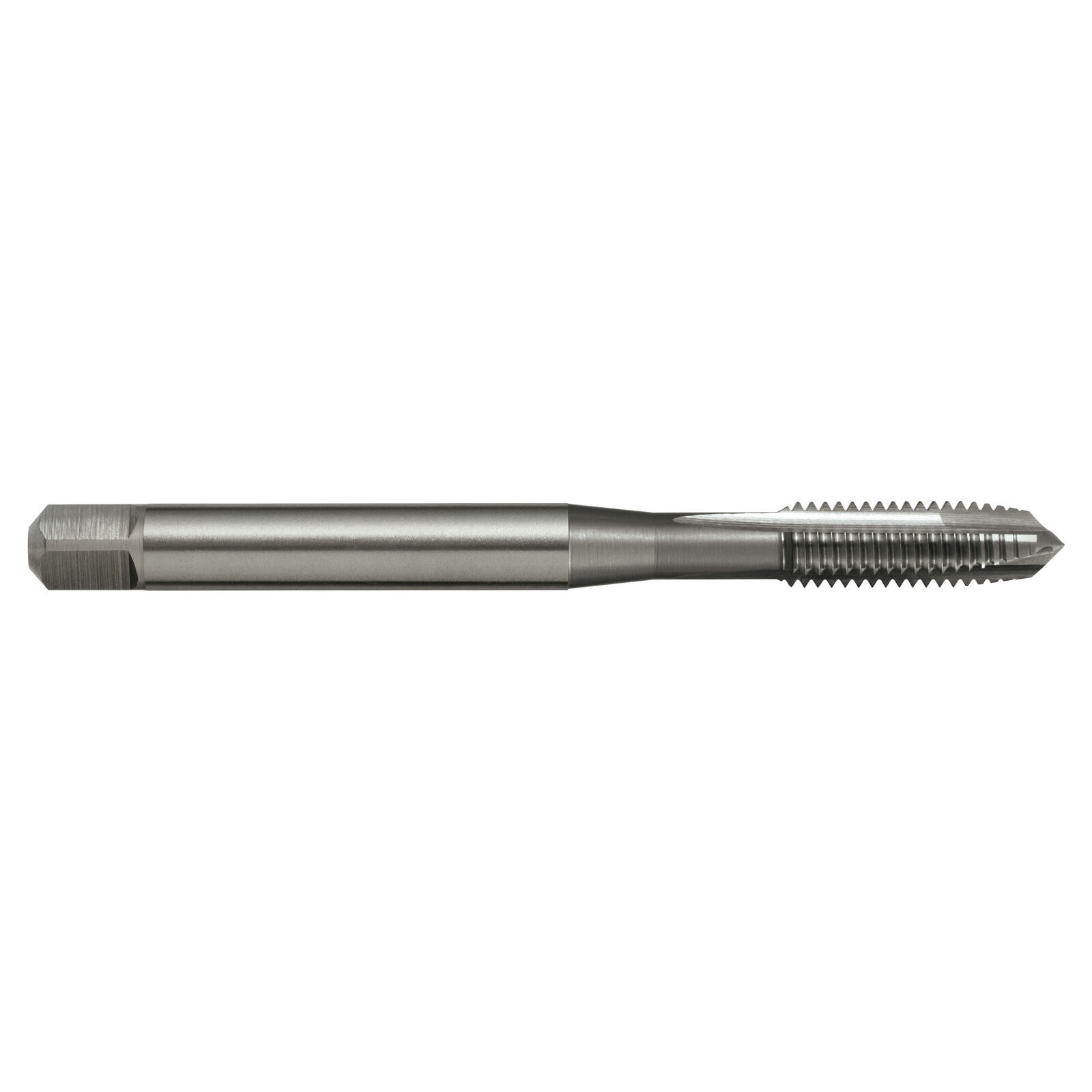

Tap T122 M 10x1.5 6H Gun W Din371 B HSSE Ni Sutton T1221000

Features

• Suitable for use in soft materials
• CrN for copper and non-ferrous materials
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: W (for soft materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Plasma Nitride (Ni)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T1221000
