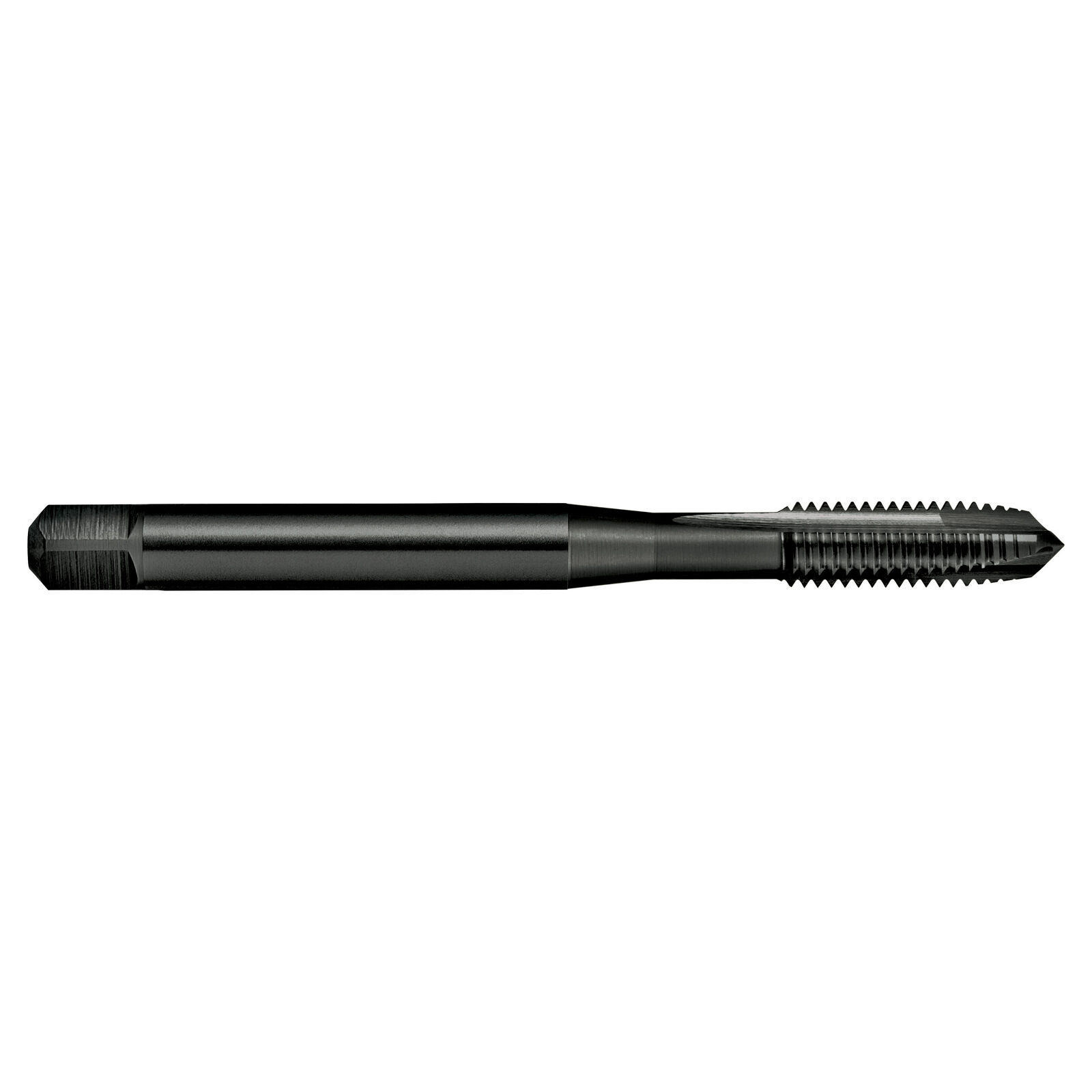

Tap T114 M 3x0.5 6HX Gun VA Din371 B PM-V3 Blu Sutton T1140300
Part No: T1140300
$52.23
Includes GST
Notify me when back in stock
Tap T114 M 3x0.5 6HX Gun VA Din371 B PM-V3 Blu Sutton T1140300
Features
- PM-HSSE V3 offers superior performance
- Use in stainless steels and high strength steels
- Suitable for materials up to 850N/mm2
- Through holes
- Depths up to 3 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form B / 4.5 x P
Part Number/SKU: T1140300
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | T1140300 |
Barcode # | 9311963413921 |
Brand | Sutton Tools |
Shipping Weight | 0.0060kg |
Shipping Width | 0.010m |
Shipping Height | 0.009m |
Shipping Length | 0.081m |
