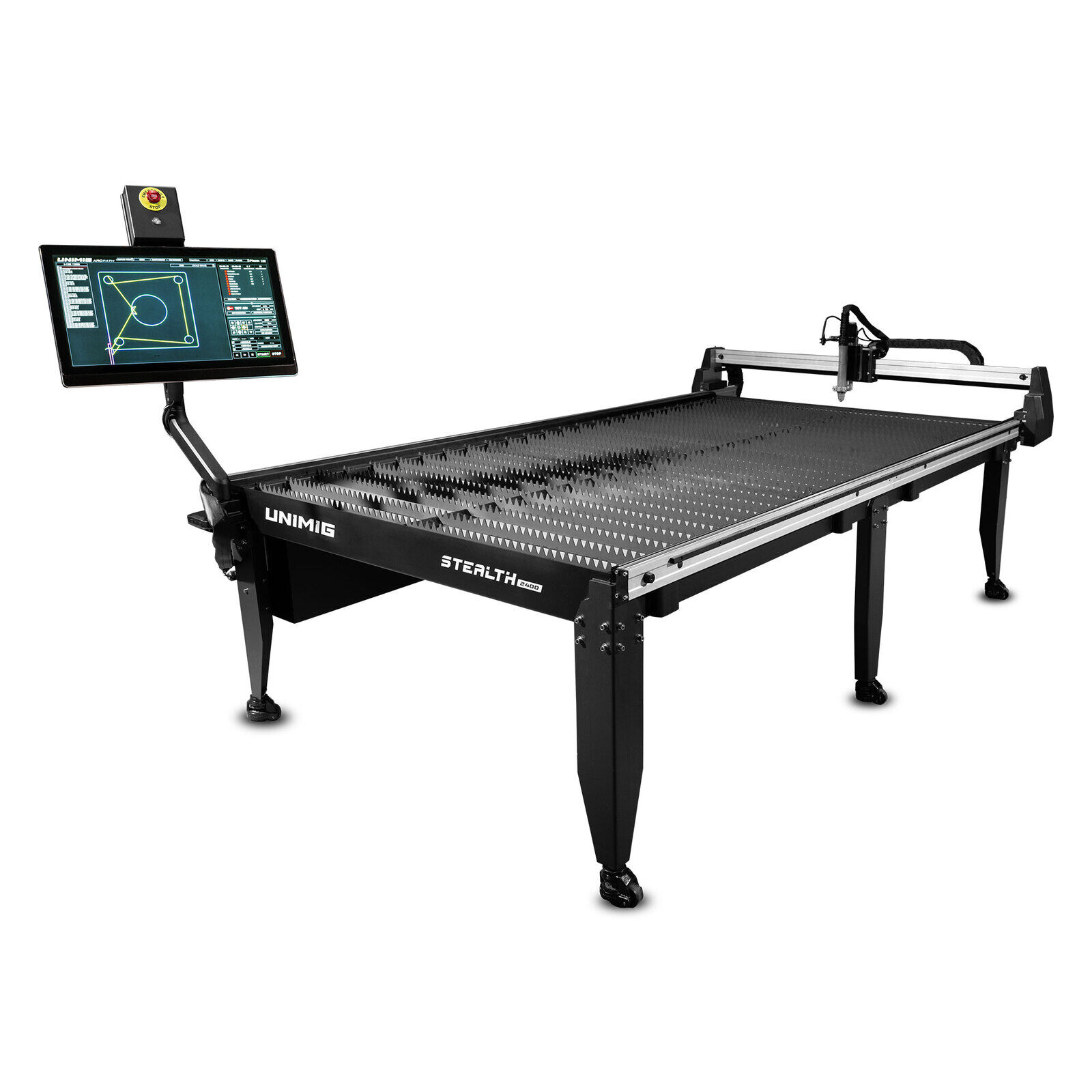

Stealth 2400 CNC Table 1.2M x 2.4M Unimig U11098

The Stealth 2400 CNC Tables gives you the space for a full-sheet to suit your cutting needs.

• Automatic Torch Height Control continuously maintains the optimal height for the best quality across the whole cut
• The touchscreen computer comes with our in-house, custom-designed UNIMIG Arc Path CNC Control software
• A true 1.2×2.4m full-sheet cut size

Built-In Water Bed With Slat Slots
The built-in water bed on the Stealth CNC table works to absorb fumes and sparks, giving you a cleaner workspace. With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining.

Additionally, the tables come with laser-cut mild steel slats, and the slat slots mean you can easily replace slats that become warped or damaged.

True Cut Size
A true 1.2×2.4m full-sheet cut size. The gantry will travel 1.23×2.44m on the Stealth 2400, so you can guarantee you’ll get the full size of the table to cut across.

Automatic Torch Height Control
The Automatic Torch Height Control continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting over wavy or warped material. By maintaining the optimal height, you get a consistent cutting quality, minimal dross, increased consumable life and faster cutting speeds.

Automatic Collision Detection & Limiter Switches On All Axes
With limiter switches on all axes and an automatic collision detection system, the Stealth table uses sensors, software algorithms, and real-time data processing to detect and prevent potential collisions and stop it from exceeding its predefined range of motion.

UNIMIG Arc Path CNC Control Software
The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software. Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files.

Maximise Your Production
Let the Stealth CNC table handle the heavy lifting so you can increase your productivity. The Stealth 2400 CNC allows you to produce more parts and projects efficiently. Optimise your cuts and nest parts on full sheets to minimise loading time and reduce material waste.

MACHINE SPECIFICATIONS

• PRIMARY INPUT VOLTAGE - 240V Single Phase
• SUPPLY PLUG - 10A
• WARRANTY (Years) - 2

SIZE & WEIGHT

DIMENSIONS (mm)

Table Dimensions: 170x346x115cm, Cut dimensions: 1.23m x 2.44m

WEIGHT (kg)

Table Weight: 340kg, Max Table Load: 270kg, Water Bed Capacity: 350L

Part Number/SKU: U11098
