Magswitch Mag Drill Disrupter 30 8100920

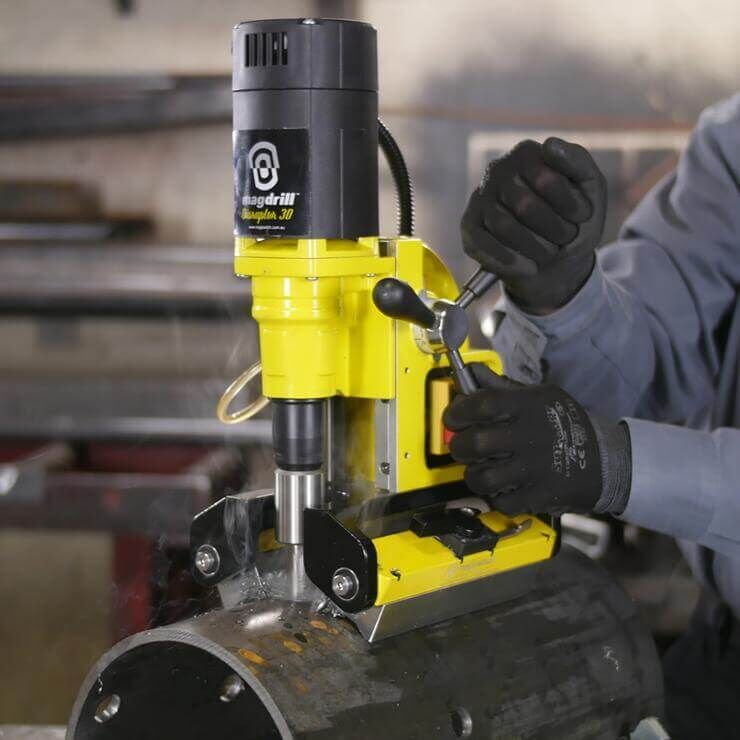

The Magswitch MagDrill Disruptor 30 is a magnetic drill that utilizes patented shallow-field magnetic technology that offers incredibly strong grip, even on steel as thin as 1/8” with patent-pending base automatically pivots to conform to any pipe 3” or larger.

Features & Benefits

  • Powered by our patented technology, our magnets do not require electricity and stays in place during power loss.
  • Lightweight, compact and safe magnetic drill. • Drill holds strong on thick or thin steel (down to 11 gauge!).
  • Swivel base can be used on flat as well as curved surfaces.
  • Can be used on 3” pipe and up, inside or outside the curve.
  • The base magnets can be ‘partially actuated’ in order to slide the drill into precise position.
  • Easy cleaning, inspection and maintenance as one magnet can be turned off and the other can still hold while pivoting the tool.
  • Drill cuts holes up to 1-3/16” in diameter and 2” deep.
  • Standard ¾” Weldon spindle will take popular cutters.

SPECIFICATIONS

  • Max Breakaway: 1172 lbs (531.6 kg)
  • Full Saturation Thickness: 1/2″ (12.7 mm)
  • Speed: 775 RPM (No Load) – 400 RPM (Load 900 W)
  • Max Tip Force: 584 lbs (264.9 kg)
  • Product Weight: 24.2 lbs (11 kg)
  • Voltage: 110-120 V/50-60 Hz
  • Smallest Pipe Diameter: 3.5″ (80 mm)

Part Number/SKU: 8100920

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 8100920
Brand Magswitch
Shipping Weight 30.0000kg
Shipping Width 0.500m
Shipping Height 0.450m
Shipping Length 0.650m
Unit Of Measure ea
