G Clamps Super Grade Unbreakable Dawn
Australian Made
G Clamps Super Grade Unbreakable Dawn

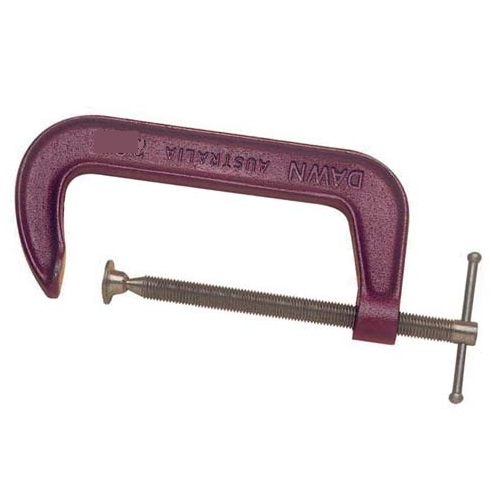

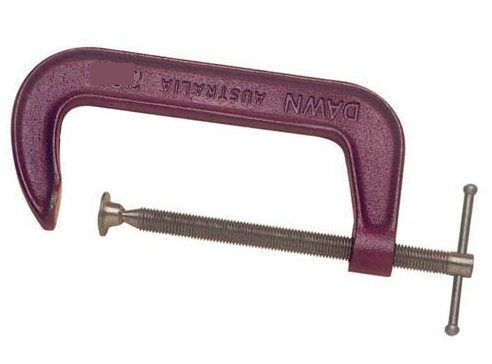

DAWN G-Clamps are cast in ductile iron and are unbreakable. They have heavy ribbed frame for
strength and durability. This popular type has high quality zinc plated Whit worth threaded screw with
swivel button. The swivel button enables the user to apply pressure evenly on angular workpieces.
For metal, woodworking and general use.
Part No. | Size-Jaw Opening | Throat Depth | Frame Proof Load | Weight |
61152 | 75mm | 45mm | 500 Kg | 0.6 Kg |
61153 | 100mm | 50mm | 750 Kg | 1.0 Kg |
61155 | 150mm | 70mm | 1100 Kg | 2.0 Kg |
61156 | 200mm | 85mm | 1300 Kg | 3.3 Kg |
61157 | 250mm | 95mm | 1750 Kg | 3.9 Kg |
61158 | 300mm | 100mm | 2100 Kg | 4.3 Kg |
Part Number/SKU: 6115_
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | 6115_ |
Brand | Dawn Tools & Vices |
Shipping Width | 0.300m |
Shipping Height | 0.400m |
Shipping Length | 0.400m |
Unit Of Measure | ea |
