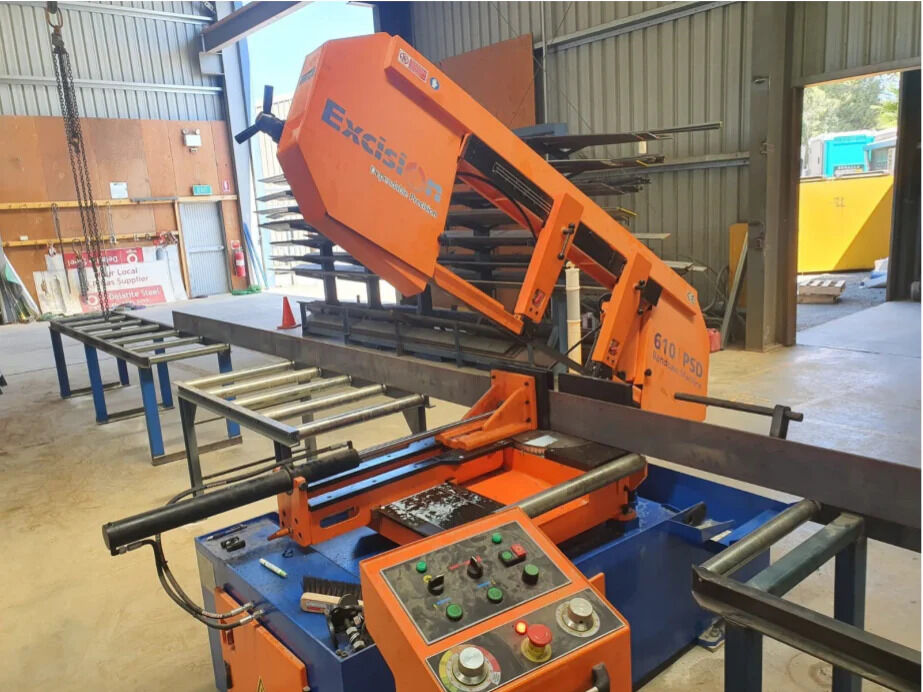

Excision 610PSD SEMI-AUTO Bandsaw Machine 3 Phase 401610PSD3
Part No: 401610PSD3
$40,595.00
Includes GST
Notify me when back in stock
Excision 610PSD SEMI-AUTO Bandsaw Machine 3 Phase 401610PSD3
FEATURES:
- Manual Control Panel - Only control panel with buttons.
- Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
- Hydraulic Vise - Pressure, clamping period and clamping time can be adjusted.
- Swarf Brush - Removes swarfs to keep clean the wheels and blade.
- Hydramechanical Blade Tensioning - Tensioning period and tensioning time can be adjusted. So blade does not relax and curve cutting gets prevented.
- Blade Bedding with Carbide and Bearings
- Rotating Table
- 60 cm Long Material Stopper System
- Bevel Helical Gearbox
- Moveable Guide Arms
- Adjustable Bow Down Speed
- Adjustable vise Tension
- Easy Readable Angle Ruler
Technical Specification:
- Main Motor : 4 kW
- Gearbox : Bevel Helical PKD 2390 High Efficiency
- Hydraulic Motor : 0,37 kW
- Hydraulic Tank Capacity : 8 Liter
- Coolant Motor : 0,12 kW
- Coolant Tank Capacity : 30 liters
- Blade Speed : 25-90 m/min
- Blade Dimensions : 4780 x 34 x 1,1 mm
- Machine Weight : 1.350 kg
- Machine Dimensions : 1400 x 2350 x 1500 mm
- Table Height : 750 mm
Part Number/SKU: 401610PSD3
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | 401610PSD3 |
Brand | Excision |
Shipping Weight | 100.0000kg |
Shipping Width | 0.800m |
Shipping Height | 1.000m |
Shipping Length | 2.000m |
Unit Of Measure | ea |
Be The First To Review This Product!
Help other Top Tools users shop smarter by writing reviews for products you have purchased.
