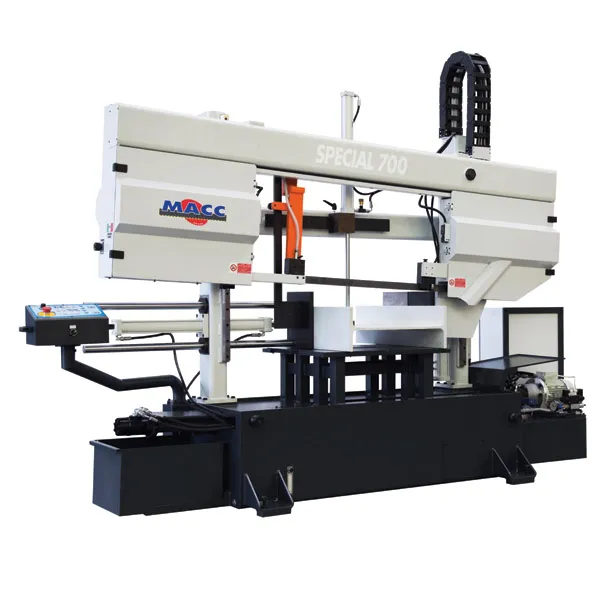

Dual Column Bandsaw 515 X 700mm X 415V 3Phase MACC MB-700-3
Part No: MB-700-3
$0.00
Includes GST
Notify me when back in stock
Dual Column Bandsaw 515 X 700mm X 415V 3Phase MACC MB-700-3
Features:
- Italian made quality.
- Highly efficient semi-automatic belt saw with excellent cutting accuracy.
- Used to cut middlesize and large bars and sections.
- Sturdy structure and arc, sliding vertically on two columns provide the machine with the required stiffness and cutting unit accuracy.
Specifications:
- Motor: 4kW Three Phase (415V)
- Vice Capacity: 710mm
- Blade Size: 5740 x 41 x 1.3mm
- Control Unit Motor: 1.5kW
- Electric Pump: 0.12kW
- Fly Wheel Dimensions: ø 520mm
- Cutting Thickness: 1.5 mm
- Cutting Angle Max: 45° right to 60° left
- Coolant Tank Capacity: 50L
- Weight: 1900kg
90° Cutting Capacity:
- Round: 530mm
- Square: 500mm
- Rectangle: 500 x 700mm
Part Number/SKU: MB-700-3
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | MB-700-3 |
Brand | Macc |
Shipping Weight | 1900.0000kg |
Shipping Width | 0.900m |
Shipping Height | 0.900m |
Shipping Length | 0.900m |
Unit Of Measure | ea |
