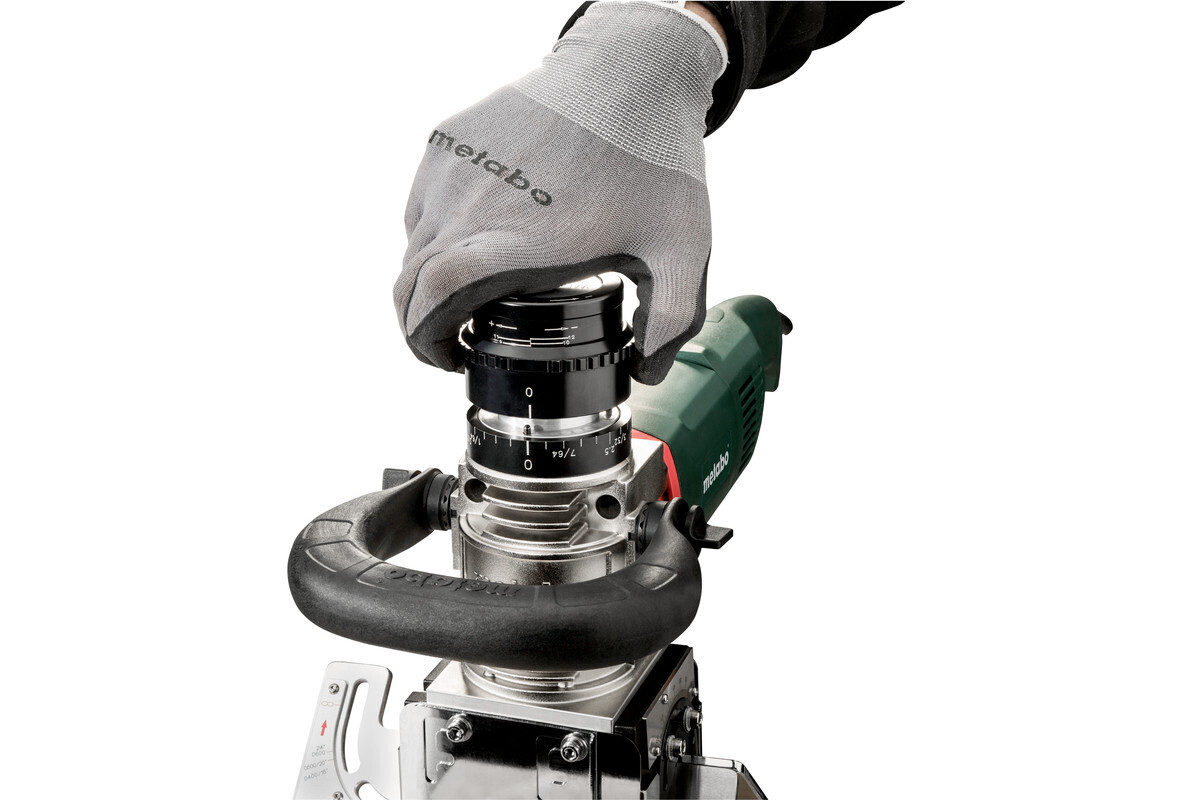

Bevelling Tool 1600 Watts KFM 16-15F Metabo 601753530
Notify me when back in stock
Bevelling Tool 1600 Watts KFM 16-15F Metabo 601753530
Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Precise setting of the chamfer angle directly via the guide plates
Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Bail handle adjusts without tools for secure, even guiding
Metabo Marathon-motor with patented dust protection for long service life
Electronic overload protection, soft start and restart protection
Protection of the user by virtue of lateral plates for conveying the chips
SPECIFICATIONS
No-load speed - 12000 rpm
Rated input power - 1600 W
Output power - 900 W
Type of edges - Chamfer
Max. chamfer width - 45°21 mm / 13/16 "
Max. chamfer height at 45°15 mm / 19/32 "
Grading of cutting depth setting - 0.1 mm / 0.00394 "
Curves smallest outer - Ø100 mm / 3 15/16 "
Weight (without power cable) - 6.9 kg / 15.2 lbs
Cable length - 4 m / 157 1/2 "
Noise emission
Sound pressure level - 93 dB(A)
Sound power level - (LwA)104 dB(A)
Uncertainty of measurement - K3 dB(A)
Part Number/SKU: 601753530
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | 601753530 |
Brand | Metabo |
Shipping Weight | 10.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.500m |
Shipping Length | 0.600m |
Unit Of Measure | ea |
