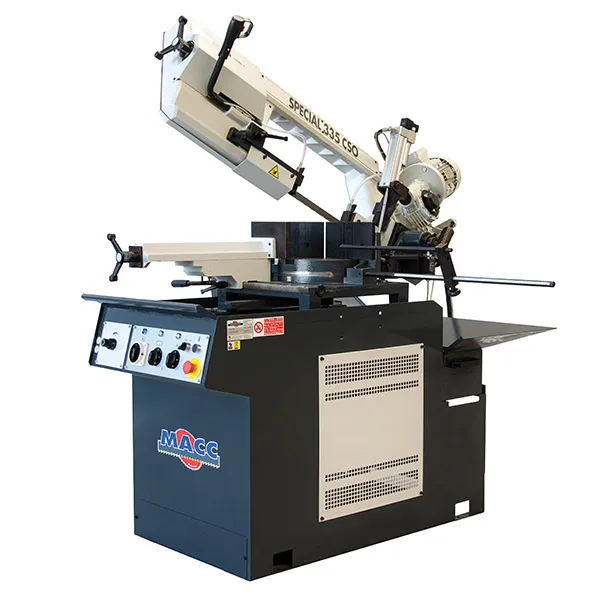

Bandsaw 260mm X 415V 3Phase Hyd DownFeed MACC MB-335CSO-3
Part No: MB-335CSO-3
$12,495.00
Includes GST
Notify me when back in stock
Bandsaw 260mm X 415V 3Phase Hyd DownFeed MACC MB-335CSO-3
Features:
- Italian made quality.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- - Trigger switch with manual down feed for small quick cuts.
- - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
- Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Comes complete with stand & blade.
- Safety emergency stop switch.
- Variable speed model available.
Specifications:
- Motor: 1.5hp Three Phase (415V)
- Blade Speed: 2 Speed 38/78mpm
- Blade Size: 27mm x 0.9mm x 3010mm
- Weight: 365kg
90° Cutting Capacity:
- Round: 260mm
- Square: 250mm
- Rectangle: 330 x 220mm
45° Right Cutting Capacity:
- Round: 215mm
- Square: 200mm
- Rectangle: 210 x 160mm
60° Right Cutting Capacity:
- Round: 130mm
- Square: 130mm
- Rectangle: 140 x 130mm
45° Left Cutting Capacity:
- Round: 225mm
- Square: 210mm
- Rectangle: 225 x 160mm
Part Number/SKU: MB-335CSO-3
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | MB-335CSO-3 |
Brand | Macc |
Shipping Weight | 132.0000kg |
Shipping Width | 0.900m |
Shipping Height | 0.700m |
Shipping Length | 0.800m |
Unit Of Measure | ea |
